Compact IP Fingerprint Device
Suprema BioEntry P2 is a compact fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry P2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled with powerful 1.0GHz CPU. Packed in a mullion-type sleek design, BioEntry P2 also provides added flexibility in system design by featuring multi card reading with dual-frequency RFID card technology.

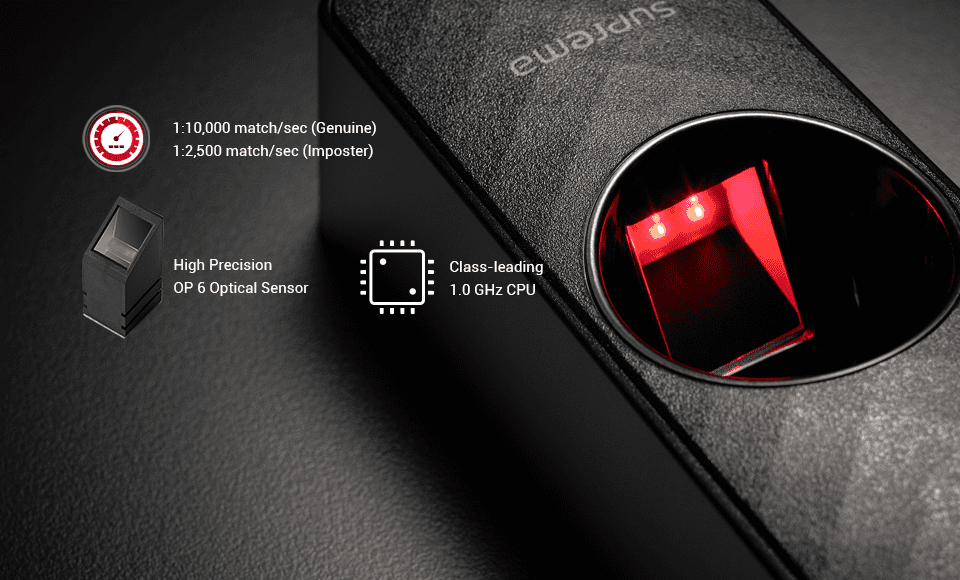

Best-in-Class Performance
BioEntry P2 features a class-leading 1.0GHz CPU that enhances user experience by offering World’s best matching speed, high-precision OP6 optical sensor and the latest Suprema fingerprint algorithm.

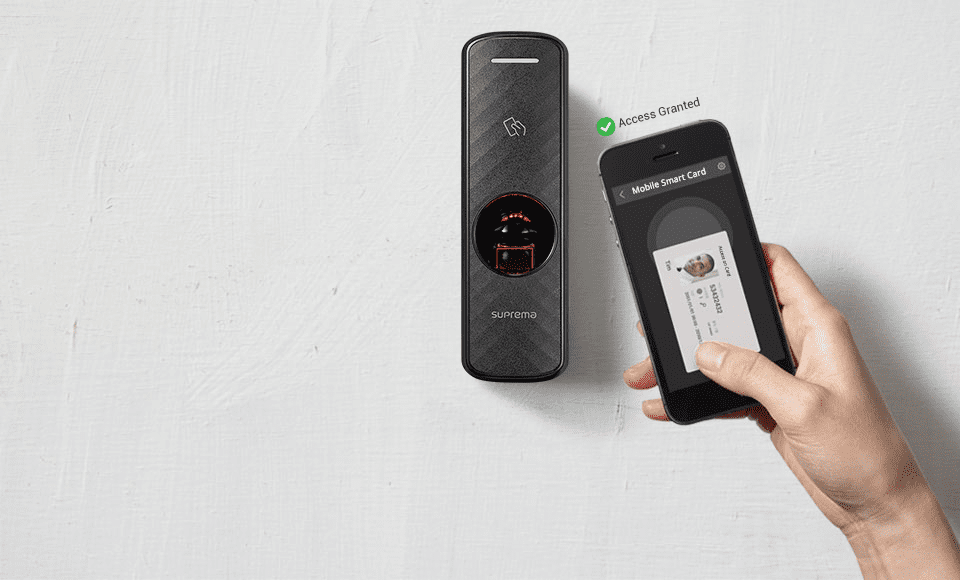

Communicates with Smartphones
With BioStar 2 Mobile card, as a credential, your smartphone is a key to access.
Interoperability by OSDP
By supporting latest OSDP V2 standards, BioEntry P2 is fully compatible with 3rd party OSDP compliance access controllers.

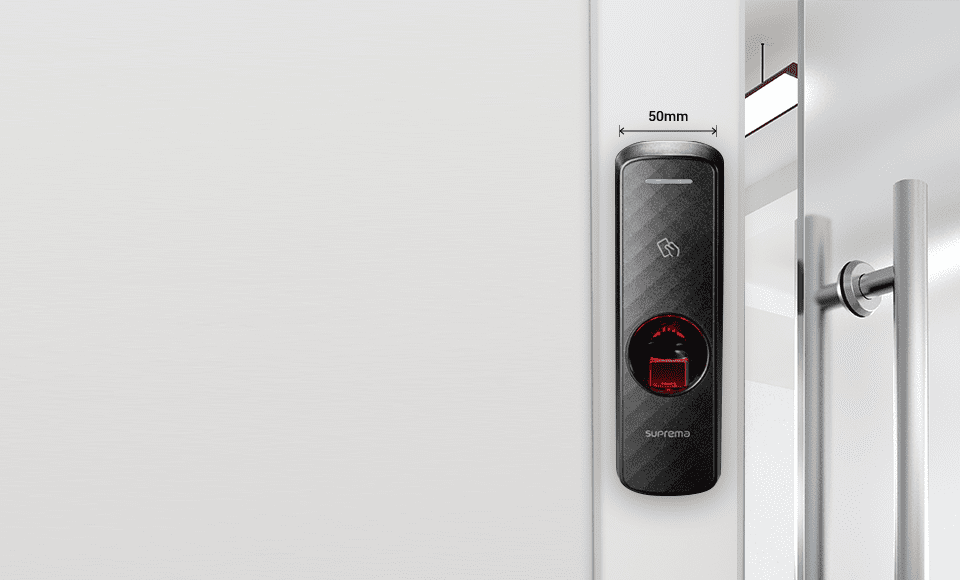

Mullion-type Design
With its 50mm width, BioEtnry P2 perfectly fits in in narrow spaces and door frames.
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID card technology, BioEntry P2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards that HID multiCLASS readers support. On top of fingerprint credential, BioEntry P2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM and NFC.
| Credential | Biometric | Fingerprint | ||
| RF Option | BEP2-OD: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC | |||
| BEP2-OA: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, iCLASS SEOS, NFC | ||||
| RF read range* | MIFARE/DESFire/EM/HID Proxy/iCLASS: 50 mm, Felica: 30 mm * RF read range will vary depending on the installation environment. |
|||
| Capacity | Max. User (1:1) | 10,000 (Based on one finger enrollment per user) | ||
| Max. User (1:N) | 10,000 (Based on one finger enrollment per user) | |||
| Max. Finger per user | 10 | |||
| Max. Text Log | 1,000,000 | |||
| Hardware | CPU | 1.0 GHz | ||
| Memory | 2GB Flash + 64MB RAM | |||
| LED | Multi-color | |||
| Sound | Multi-tone Buzzer | |||
| Operating temperature | -20°C ~ 50°C | |||
| Operating humidity | 0% ~ 80%, non-condensing | |||
| Dimension (W x H x D) | 50 mm x 164 mm x 37.5 mm | |||
| Weight | Device: 162 g | |||
| Bracket: 39 g (Including washer and bolt) | ||||
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE | |||
| Interface | Ethernet | Supported (10/100 Mbps, auto MDI/MDI-X) | ||
| RS-485 | 1ch Host or Slave (Selectable) | |||
| Wiegand | 1ch Input or Output (Selectable) | |||
| TTL input | 2ch Input | |||
| Relay | 1 Relay | |||
| Tamper | Supported | |||
